PPC 08 – Panel PC with 8,4″ TFT

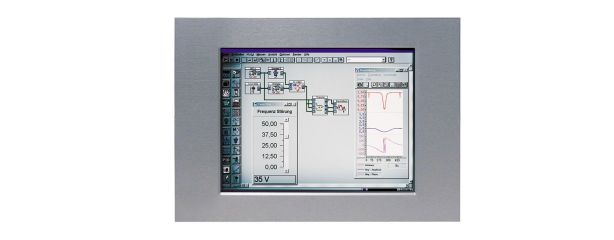

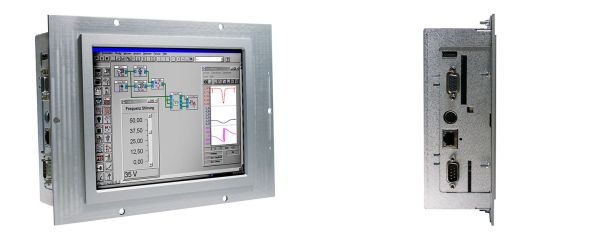

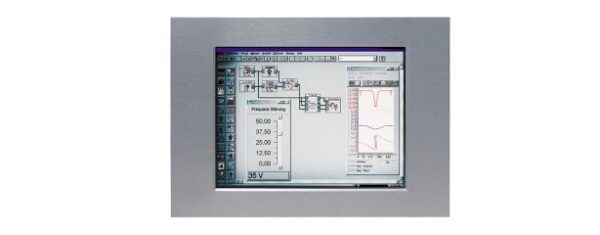

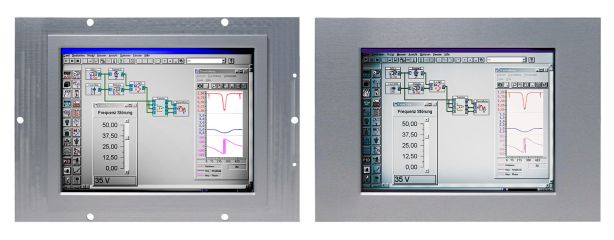

The PPC 08 contains an 8,4“ LCD[nbsp] with SVGA resolution (840×600 pixel), optional populated with a resistive 4 wire touch screen. There are 2 front panels for choice: An aluminium frame with rear stud bolts or a stable frame to be mounted in the breakout of a console front panel from the rear side. The singleboard computer is equipped with CPUs either Intel ™ Atom D2550®, N2600® or AMD™ Geode LX800®, 500MHz. There are also 2 power supplies for choice: 12/24VDC or 90-264VAC. The aluminium front panel might be modified according to clients needs.

The PPC 08 contains an 8,4“ LCD[nbsp] with SVGA resolution (840×600 pixel), optional populated with a resistive 4 wire touch screen. There are 2 front panels for choice: An aluminium frame with rear stud bolts or a stable frame to be mounted in the breakout of a console front panel from the rear side. The singleboard computer is equipped with CPUs either Intel ™ Atom D2550®, N2600® or AMD™ Geode LX800®, 500MHz. There are also 2 power supplies for choice: 12/24VDC or 90-264VAC. The aluminium front panel might be modified according to clients needs.

Out of stock

Additional information

CPU

Intel ATOM D2550 / 2x 1,86GHz dual core, Intel ATOM N2600 / 2×1.6GHz dual core, AMD Geode LX800 / 500MHz
Display

TFT 8,4″ SVGA
Touch­screen

Resistiv; 4-Draht
Speicher

D2550: max. 4GB-DDR3, N2600: max. 2GB-DDR3, LX800: max. 1GB-DDR
Ethernet

D2550+N2600: 2x 10/100/1000Mbps, LX800: 1x 10/100Mbps (optional: 2x 10/100Mbps)
Seriell / USB

1x RS232; 2x USB
Massenspeicher

D2550/N2600: mSATA 2 bis 8GB SLC oder 32/64GB MLC, LX800: Industrial Compact Flash, optional: 2,5" HD min. 250GB
Erweiterung

WLAN; RS232/422/485; USB; Audio
Betriebssystem

Microsoft Windows 7 (außer LX800), Microsoft Windows Embedded Standard 7 (außer LX800), Microsoft Windows 8.1 (außer LX800), Microsoft Windows Embedded Standard 8 (außer LX800), Microsoft Windows 10 (außer LX800), Microsoft Windows 10 IoT (außer LX800)
Maße (BxHxT)

Pulteinbau: 246x177x90mm, Einbau hinter Frontafel-Ausbruch: 255x185x64mm
Gewicht

2,0kg
Netzteil

12/24 VDC, 115/230 VAC
Anmerkung Netzteil

LX800 auch optional mit integrierter USV erhältlich
Option

Fronttafel- oder Wandeinbau, Auch als Monitoreinheit mit VGA- und/oder DVI-Eingang erhältlich.option
