RPi 07 – Raspberry-Pi Panel-PC with 7″ TFT

The robust aluminium housing of the industrial Panel-PC Raspberry Pi RPi07 contains of a 7″ multi-touch LCD (wide screen) with a resolution of 800×400 pixel. The CPU board includes the newest Raspberry Pi version 3B / 3B+ / 4B with the ARM Cortex A53 or A72.
The system needs an input voltage of 12 or 24VDC. Also there are external power supplies available for different voltages.

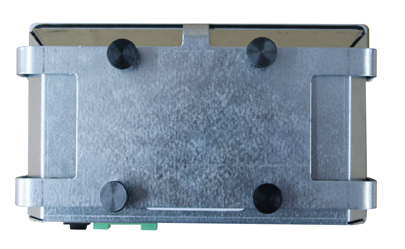

The RPi07 is equipped with a VESA-75 fastening to add a pivot arm or foot; alternatively there is a holding clamp disposable for mounting in front panels. The standard color of the rear housing is RAL9005 (black) and the front frame is natural aluminium; both being changeable upon customers demand.

The robust aluminium housing of the industrial Panel-PC Raspberry Pi RPi07 contains of a 7″ multi-touch LCD (wide screen) with a resolution of 800×400 pixel. The CPU board includes the newest Raspberry Pi version 3B / 3B+ / 4B with the ARM Cortex A53 or A72.
The system needs an input voltage of 12 or 24VDC. Also there are external power supplies available for different voltages.
The RPi07 is equipped with a VESA-75 fastening to add a pivot arm or foot; alternatively there is a holding clamp disposable for mounting in front panels. The standard color of the rear housing is RAL9005 (black) and the front frame is natural aluminium; both being changeable upon customers demand.

Data-sheet-RPi07.pdf

Additional information

CPU

3B: ARM Cortex A53 / 4x 1,2GHz quad core
3B+: ARM Cortex A53 / 4x 1,4GHz quad core
4B: ARM Cortex A72 / 4x 1,5GHz quad core

Display

TFT 7″ WVGA

Touch­screen

Multitouch (projected capacitive)

Speicher

3B/3B+: 1GB LPDDR2
4B: 2, 4 or 8GB LPDDR4

Ethernet

3B: 1x 10/100Mbps
3B+: 1x 10/100/300Mbps
4B: 1x 10/100/1000Mbps

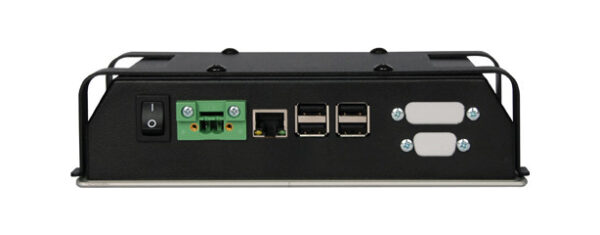

Seriell / USB

3B/3B+: 4x USB 2.0
4B: 2x USB 2.0 and 2x USB 3.0

Massenspeicher

16GB Micro-SD SDHC Class10

Erweiterung

Real-time clock (RTC), DIO with optocouplers, I²C, CAN, RS232

Betriebssystem

Raspbian, Microsoft® Windows 10 IoT Core

Maße (BxHxT)

200x118x48mm

Gewicht

0,9 kg

Netzteil

12/24/48 VDC, 9-36V DC

Option

holding clamp for mounting in consoles, control cabinet doors or wall recessing, digital input card 8-bit with optocouplers, digital output 8-bit card with optocouplers, analog input card 5 channel 10-bit, analog output card 4 channel 10-bit
