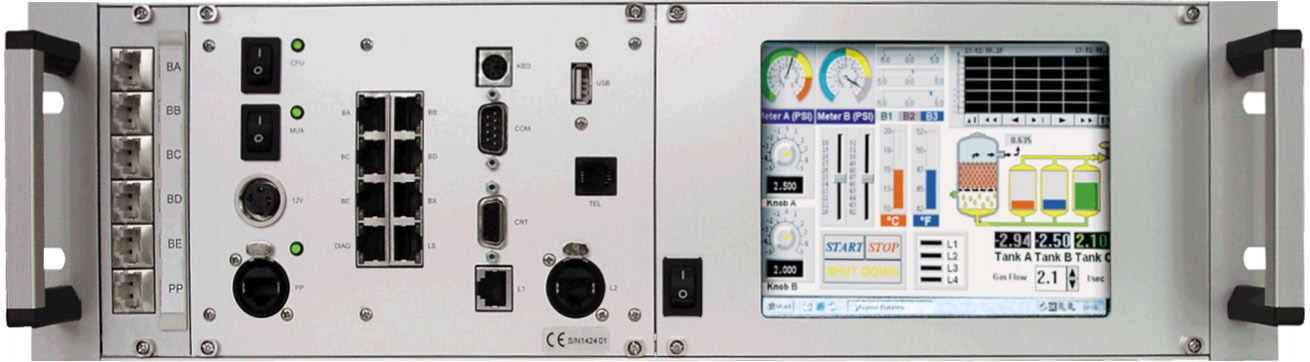

KOM – communication computer 19 “3HE / 84TE

HF subrack 19 “3HE / 84TE with TFT display, patch panel, modem, hub, modular IPC, Ethernet, USB and power supply.

APPLICATIONS < / strong>
The KOM is used as a modular communication system with an operating and visualization level. It is used as a networked control center to which numerous subsystems are connected. The central computer collects the data from all subsystems, processes them, organizes them and stores them. The device is installed in a 19 “switch cabinet frame (with front mounting) or on mounting plates (with rear mounting).

The KOM contains three slots as cassettes: The power supply with the display unit (42TE) in front of it, the computer cassette (36 TE) and the patch panel (8TE). All modules are set up separately from each other.

The display unit contains a 6.5 “VGA TFT display with protective screen or optional resistive touchscreen and a separate power switch. It remains switched off in automatic continuous operation. The power supply unit is available with a filter, power switch and IEC socket in 24VDC or 95-265VAC.

The computer unit consists of a single board computer (single European map with exchangeable ETX CPU module) that is connected to an 8-way Ethernet switch and a modem. The PC connections for PS2 keyboard / mouse, USB, Ethernet, external VGA socket and various status LEDs are included in the front panel; In addition, the switch and modem are switched off separately The patch field represents a simple, operationally reliable wiring level.

The computing power of the fanless CPU can be between AMD Geode 266 MHz, VIA Eden 400 MHz and Intel Celeron 650 MHz These are integrated on the ETX Baseboard (EBE) developed by MASS. The main memory can be expanded up to 256MB, a bootable CompactFlash or a 2.5 “hard disk can be added. FDisk, CD-ROM or USB stick can be connected externally.

Price on request

Out of stock

Additional information

Power supply

12/24 VDC


TFT display with 6.5 “diagonal, 640×480 BP (VGA) resolution, 500: 1 contrast and 256,000 displayable colors., Integrated ETX baseboard, scalable CPU: from AMS Geode 266MHz to Intel Celeron 650MHz., Bootable CF card, 2nd CF card on the Geode CPU, PC card drive and / or 2.5 “hard disk drive., Fanless device at temperatures 0 … 55 ° C offers continuous operation without mechanical wear parts., Power supply selectable: 24VDC or 95-265VAC; The display is switched off in continuous operation., Operating systems DOS, WIN NT, WIN 98/2000, WIN XP, and XP embedded, (Linux on request).
