RPi 156 – Raspberry-Pi-3 PC with 15,6″ TFT Panel PC

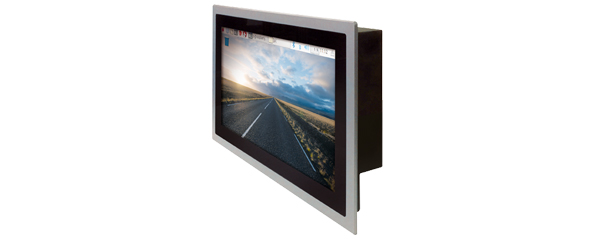

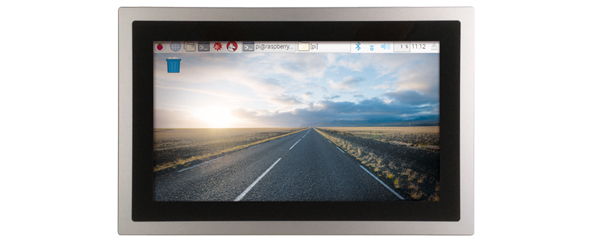

The rugged aluminum housing of the industrial Raspberry Pi-3 PC RPi156 includes a 15.6″ widescreen multi-touch LCD with a resolution of 1920×1080 pixels. The CPU unit is the Raspberry Pi 3B+ with its ARM Cortex A53 with 4x 1.4GHz.
The RPi156 needs an input voltage of 12 to 24VDC and will be used as a panel PC installed in front panels.

The rugged aluminum housing of the industrial Raspberry Pi-3 PC RPi156 includes a 15.6″ widescreen multi-touch LCD with a resolution of 1920×1080 pixels. The CPU unit is the Raspberry Pi 3B+ with its ARM Cortex A53 with 4x 1.4GHz.
The RPi156 needs an input voltage of 12 to 24VDC and will be used as a panel PC installed in front panels.

Out of stock

Additional information

CPU

ARM Cortex A53 / 4x 1,2GHz quad core, ARM Cortex A53 / 4x 1,4GHz quad core
Display

TFT 15,6" Full HD
Touch­screen

Multitouch (projected capacitive)
Speicher

1GB LPDDR2
Ethernet

1x 10/100Mbps, 1x 10/100/300Mbps
Seriell / USB

4x USB 2.0
Massenspeicher

16GB Micro-SD SDHC Class10
Erweiterung

Echtzeituhr (RTC), DIO mit Optokopplern, I²C, CAN, RS232
Betriebssystem

Raspbian, Microsoft® Windows 10 IoT Core
Maße (BxHxT)

428x277x60mm
Gewicht

5 kg
Netzteil

12/24/48 VDC, 9-36V DC
Option

Klemme für Pult-, Schrank- oder Wandeinbau, Digitale Eingangskarte 8-Bit mit Optokopplern, Digitale Ausgangskarte 8-Bit mit Optokopplern, Analoge Eingangskarte 5 Kanal 10-Bit, Analoge Ausgangskarte 4 Kanal 10-Bitoption
