PPC 07 – Panel PC with 7,0″ TFT

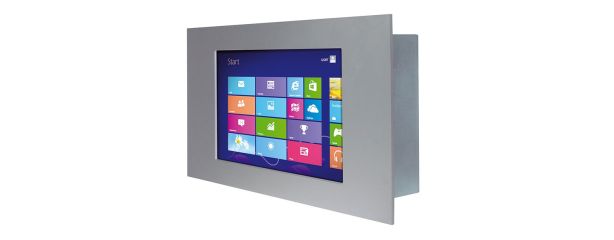

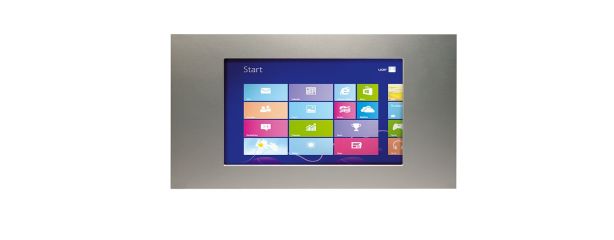

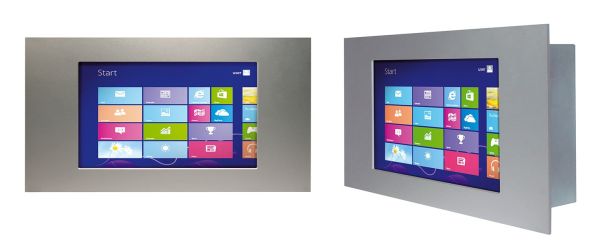

The Panel PC PPC07 contains a 7.0 “LCD with a resolution of 800 × 480 pixels and a resistive touchscreen. Intel® Dual-CoreTM ATOM D2550 with 2x 1.86GHz or AMD® Geode LX800 with 500MHz are available as processors. The PPC07 has an input voltage of 12VDC / D2550 or 5VDC / LX800 and has an aluminum front for installation in a 19 ″ / 3HE subrack (optionally also available as a desk or wall installation).

The Panel PC PPC07 contains a 7.0 “LCD with a resolution of 800 × 480 pixels and a resistive touchscreen. Intel® Dual-CoreTM ATOM D2550 with 2x 1.86GHz or AMD® Geode LX800 with 500MHz are available as processors. The PPC07 has an input voltage of 12VDC / D2550 or 5VDC / LX800 and has an aluminum front for installation in a 19 ″ / 3HE subrack (optionally also available as a desk or wall installation).

Data-sheet-PPC07.pdf

Out of stock

Additional information

Display

TFT 7″ WVGA
Touch­screen

Resistiv; 4-Draht
Speicher

D2550: max. 4GB-DDR3, LX800: max. 1GB-DDR
Ethernet

D2550: 2x 10/100/1000Mbps, LX800: 1x 10/100Mbps (optional: 2x 10/100Mbps)
Seriell / USB

1x RS232; 2x USB
Massenspeicher

D2550: mSATA 2 – 8GB SLC or 32/64GB MLC, LX800: Industrial Compact Flash, optional: 2,5" HD min. 250GB
Erweiterung

WLAN; RS232/422/485; USB; Audio
Betriebssystem

Microsoft® Windows 7 (except LX800), Microsoft® Windows Embedded Standard 7 (except LX800), Microsoft® Windows 8.1 (except LX800), Microsoft® Windows Embedded Standard 8 (except LX800), Microsoft® Windows 10 (except LX800), Microsoft® Windows 10 IoT (except LX800)
Maße (BxHxT)

3HEx48TEx75mm (Schnittstellen unten), 3HEx48TEx125mm (Schnittstellen hinten)
Gewicht

1,8 kg
Netzteil

12/24 VDC, 115/230 VAC
Option

Arm with rotational / tilt adjustment and locking, Monitor unit without PC, Input VGA or DVI
