RPi 156 – Raspberry-Pi-3 PC with 15,6″ TFT Panel PC

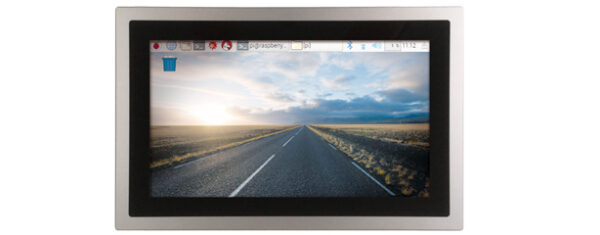

The rugged aluminum housing of the industrial Raspberry Pi-3 PC RPi156 includes a 15.6″ widescreen multi-touch LCD with a resolution of 1920×1080 pixels. The CPU unit is the Raspberry Pi 3B+ with its ARM Cortex A53 with 4x 1.4GHz.
The RPi156 needs an input voltage of 12 to 24VDC and will be used as a panel PC installed in front panels.

Price on request

Out of stock

Additional information

CPU

ARM Cortex A53 / 4x 1,2GHz quad core, ARM Cortex A53 / 4x 1,4GHz quad core
Display

TFT 15,6" Full HD
Touch­screen

Multitouch (projected capacitive)
Memory

1GB LPDDR2
Ethernet

1x 10/100Mbps, 1x 10/100/300Mbps
Seriell / USB

4x USB 2.0
Mass memory

16GB Micro-SD SDHC Class10
Extension

Real-time clock (RTC), DIO with optocouplers, I²C, CAN, RS232
Operating system

Raspbian, Microsoft® Windows 10 IoT Core
Dimensions

428x277x60mm
Weight

5 kg
Power supply

12/24/48 VDC, 9-36V DC
Option

digital input boards 8-bit with optocouplers, digital output 8-bit boards with optocouplers, analog input boards 5 channel 10-bit, analog output boards 4 channel 10-bit
