RPi 10 Xtend – Raspberry-Pi Panel-PC with PiXtend® v2-l and 10,1″ TFT

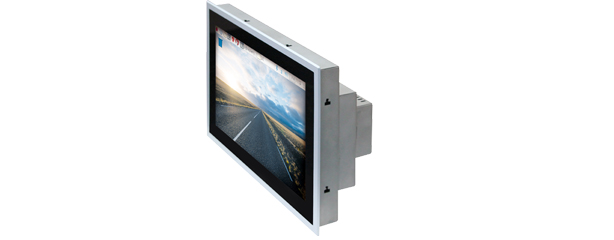

The rugged stainless steel housing of the industrial Raspberry Pi Panel PC RPi10-Xtend includes a 10,1 “widescreen multi-touch LCD in an aluminum front with a resolution of 1280×800 pixels. The CPU unit is the Raspberry Pi 3B+ / 4B with its ARM Cortex A53 or A72.
With the integrated I / O and interface extension PiXtend® v2-L from Qube Solutions, this Panel PC may be used as a programmable logic controller to be installed in consoles, cabinets or walls. It also includes a visualisation-, operation- and programming unit.

Price on request

Additional information


3B: ARM Cortex A53 / 4x 1,2GHz quad core
3B+: ARM Cortex A53 / 4x 1,4GHz quad core
4B: ARM Cortex A72 / 4x 1,5GHz quad core




Multitouch (projected capacitive)


3B/3B+: 1GB LPDDR2
4B: 2, 4 or 8GB LPDDR4


3B: 1x 10/100Mbps
3B+: 1x 10/100/300Mbps
4B: 1x 10/100/1000Mbps

Seriell / USB

3B/3B+: 3x USB 2.0
4B: 1x USB 2.0 and 2x USB 3.0

Mass memory

16GB Micro-SD SDHC Class10

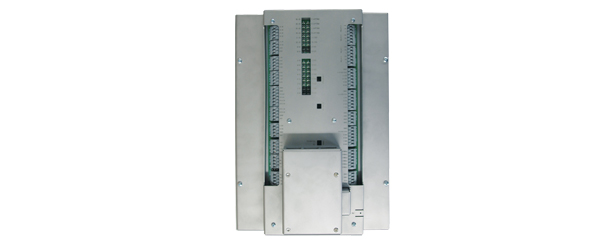

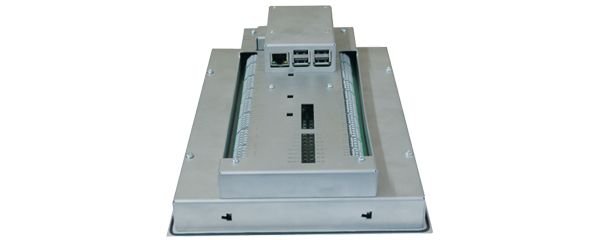

16x digital input, 12x digital output, 6x PWM output, 4x relais 230 V, 4x analog voltage input, 2x analog current input, 2x analog voltage output, 1x RS232, 1x RS485, 1x CAN, real time clock (RTC), 4x GPIO

Operating system

Raspbian, Support for Codesys, Linux, FHEM, Python, Node-RED und OpenPLC


269,5 x 192,5 x 76,6 mm


1,6 kg

Power supply

12/24 VDC
