RPi 07 – Raspberry-Pi Panel-PC with 7″ TFT

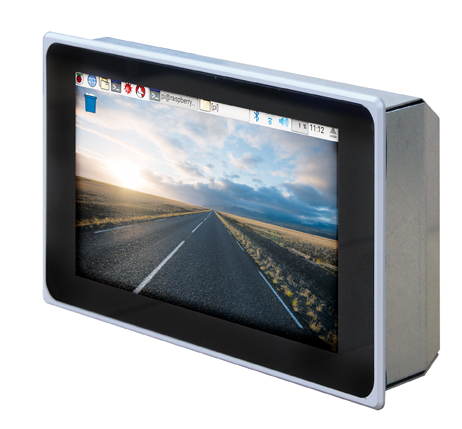

The robust aluminium housing of the industrial Panel-PC Raspberry Pi RPi07 contains of a 7″ multi-touch LCD (wide screen) with a resolution of 800×400 pixel. The CPU board includes the newest Raspberry Pi version 3B / 3B+ / 4B with the ARM Cortex A53 or A72.
The system needs an input voltage of 12 or 24VDC. Also there are external power supplies available for different voltages.

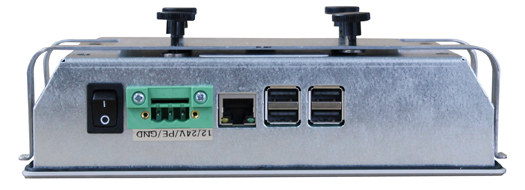

The RPi07 is equipped with a VESA-75 fastening to add a pivot arm or foot; alternatively there is a holding clamp disposable for mounting in front panels. The standard color of the rear housing is RAL9005 (black) and the front frame is natural aluminium; both being changeable upon customers demand.

Price on request

Additional information


3B: ARM Cortex A53 / 4x 1,2GHz quad core
3B+: ARM Cortex A53 / 4x 1,4GHz quad core
4B: ARM Cortex A72 / 4x 1,5GHz quad core




Multitouch (projected capacitive)


3B/3B+: 1GB LPDDR2
4B: 2, 4 or 8GB LPDDR4


3B: 1x 10/100Mbps
3B+: 1x 10/100/300Mbps
4B: 1x 10/100/1000Mbps

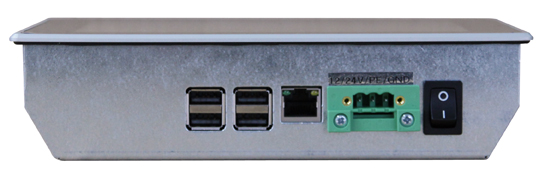

Seriell / USB

3B/3B+: 4x USB 2.0
4B: 2x USB 2.0 and 2x USB 3.0

Mass memory

16GB Micro-SD SDHC Class10


Real-time clock (RTC), DIO with optocouplers, I²C, CAN, RS232

Operating system

Raspbian, Microsoft® Windows 10 IoT Core




0,9 kg

Power supply

12/24/48 VDC, 9-36V DC


holding clamp for mounting in consoles, control cabinet doors or wall recessing, digital input card 8-bit with optocouplers, digital output 8-bit card with optocouplers, analog input card 5 channel 10-bit, analog output card 4 channel 10-bit

Data sheet:
