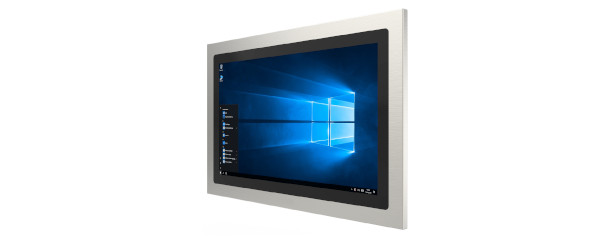

PPC 21 p1 – Panel PC with 21,5″ TFT and optional PoE

The Panel PC PPC21 p1 contains a 21,5″ LCD with full-HD resolution and a projected capacitive touchscreen. The fanless Intel® Celeron® N3350, J3455, Pentium® N4200 and AtomTM x7 E3950 CPUs are available as processors.
The PPC21 p1 is equipped with a 9-36VDC wide-range power supply and has an IP65 aluminium or stainless steel front.

Additional information

CPU

Intel® Celeron® J3455 4C, 2.3GHz, Intel® Pentium® N4200 4C, 2.5GHz, Intel® Atom™ x7 E3950 4C, 1.8GHz

Display

TFT 21,5" Full HD

Display notice

optional: sunlight readable (1600 cd/m²)

Touch­screen

Multitouch (projected capacitive)

Memory

max. 8GB DDR3L SO-DIMM

Ethernet

2x Intel® I210IT (10/100/1000), PoE IEEE 802.3af (optional)

Seriell / USB

3x USB 3.0, 2x RS232/422/485

Mass memory

2,5" SATA III SSD, 2,5" SATA III HDD, mSATA

Extension

1x full-sized Mini PCIe (mSATA or 3G/4G card with USB 2.0 signal), 1x full-sized Mini PCIe (PCIe or 3G/4G card with USB 2.0 signal), 1x SD Slot, 1x SIM Slot

Operating system

Windows 10 IoT Enterprise LTSB 2016, Windows 10 IoT Enterprise LTSC 2019, Ubuntu 16.04 LTS

Dimensions

585 x 377 x 91,6 mm, VESA100

Weight

10kg

Power supply

9-36V DC

Power supply notice

optional: Power over Ethernet (PoE)
