SAC 15 RFID – all-in-one PC with 15″ TFT and TWN4 Multitech RFID

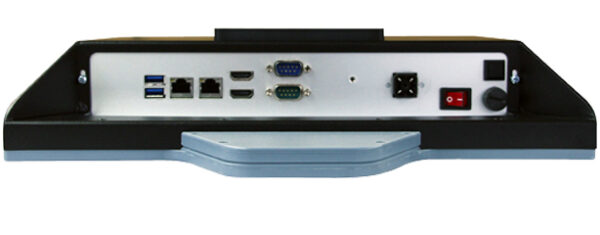

The rugged aluminum housing of the industrial-all-in-one PC SAC15-RFID contains a 15″ LCD with XGA resolution and a resistive single-touchscreen or a projected capacitive multi-touchscreen. Different processors like Intel® AtomTM N3160 / N3060 to core-i7 are available. The integrated TWN4 Multitech RFID reader / writer supports the frequencies 125 / 134.2kHz and 13.56 MHz as well as all common transponders.
The standard housing color is RAL9005 and may be changed according to customer’s requirements.

Data-sheet-SAC15-RFID.pdf

Out of stock

Additional information

CPU

Intel® ATOM N3160 (4x 1,6GHz) oder N3060 (2x 1,6GHz)
Display

TFT 15" XGA
Touch­screen

Resistiv; 4-Draht
Speicher

DDR3L SO-DIMM Modul max. 8GB
Ethernet

2x 10/100/1000Mbps
Seriell / USB

min. 1x RS232; 2x USB 3.0
Massenspeicher

Industrial mSATA SLC/MLC Module or 2,5" HDD/SSD
Erweiterung

WLAN; RS232/422/485; USB; Audio
Betriebssystem

Microsoft® Windows 7, Microsoft® Windows Embedded Standard 7, Microsoft® Windows 8.1, Microsoft® Windows Embedded 8 Standard, Microsoft® Windows 10, Microsoft® Windows 10 IoT
Maße (BxHxT)

365x347x72mm
Gewicht

5 kg
Netzteil

12/24 VDC, 115/230 VAC
Anmerkung Netzteil

90-264 VAC
Option

Tragarm, Auch als Monitoreinheit mit VGA- und/oder DVI-Eingang erhältlich.
