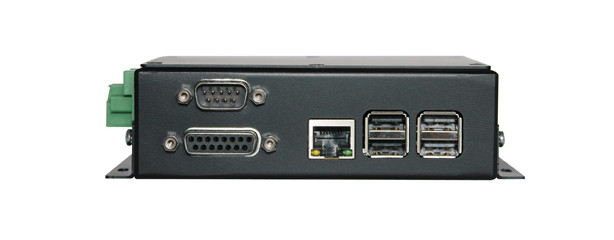

RPi-Box – Raspberry-Pi Embedded Box-PC

A solid metal housing for mounting in rough industrial environments contains the Raspberry Pi. The CPU unit is the Raspberry Pi 3B / 3B+ / 4B with its ARM Cortex A53 or A72. The main memory is 1 GB RAM; a micro-SD card (8GB extendable) includes the O.S. (Raspbian/Linux or Windows 10 IoT Core) and the application software.
The headless system got opto-encoupled digital I/Os or optional analog inputs for collection and processing of sensor data. The RPi-Box needs an input voltage of 12- or 24VDC. There are several enlargements of I/Os and interfaces. To fasten the housing there are brackets or a clamp for a 35mm mounting rail.

Data-sheet-RPiBox-s.pdf

Additional information

CPU

3B: ARM Cortex A53 / 4x 1,2GHz quad core
3B+: ARM Cortex A53 / 4x 1,4GHz quad core
4B: ARM Cortex A72 / 4x 1,5GHz quad core
Speicher

3B/3B+: 1GB LPDDR2
4B: 2, 4 or 8GB LPDDR4
Ethernet

3B: 1x 10/100Mbps
3B+: 1x 10/100/300Mbps
4B: 1x 10/100/1000Mbps
Seriell / USB

3B/3B+: 4x USB 2.0
4B: 2x USB 2.0 and 2x USB 3.0
Massenspeicher

8GB Micro-SD SDHC Class10, 16GB Micro-SD SDHC Class10, 32GB Micro-SD SDHC Class10
Erweiterung

Real-time clock (RTC), DIO with optocouplers, I²C, CAN, RS232
Betriebssystem

Raspbian, Microsoft® Windows 10 IoT Core
Maße (BxHxT)

129x106x39,7mm
Gewicht

0,45 kg
Netzteil

12/24/48 VDC, 9-36V DC
Option

holding clamp for mounting in consoles, control cabinet doors or wall recessing, digital input card 8-bit with optocouplers, digital output 8-bit card with optocouplers, analog input card 5 channel 10-bit, analog output card 4 channel 10-bit
