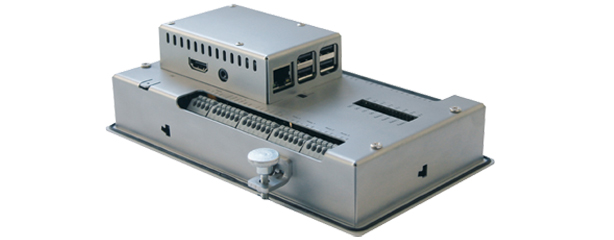

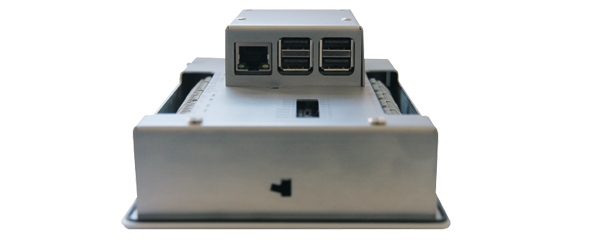

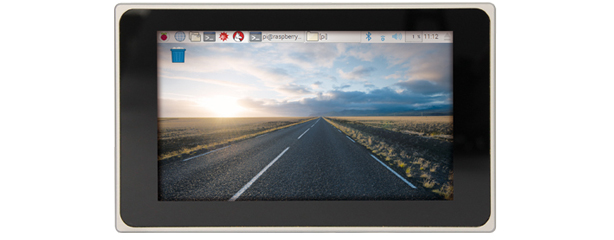

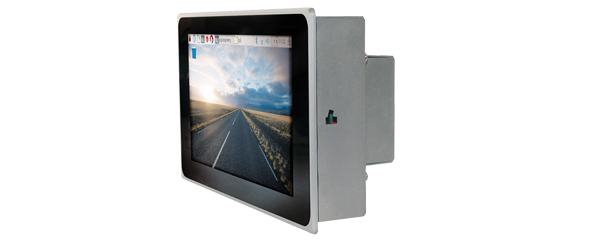

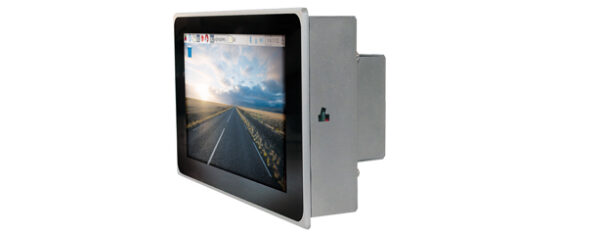

The rugged stainless steel housing of the industrial Raspberry Pi Panel PC RPi07-Xtend includes a 7 “widescreen multi-touch LCD in an aluminum front with a resolution of 800×480 pixels. The CPU unit is the Raspberry Pi 3B+ / 4B with its ARM Cortex A53 or A72.
With the integrated I / O and interface extension PiXtend® v2-S from Qube Solutions, this Panel PC may be used as a programmable logic controller to be installed in consoles, cabinets or walls. It also includes a visualisation-, operation- and programming unit.
| CPU | 3B+: ARM Cortex A53 / 4x 1,4GHz quad core |
|---|---|
| Display | TFT 7″ WVGA |
| Touchscreen | Multitouch (projected capacitive) |
| Speicher | 3B+: 1GB LPDDR2 |
| Ethernet | 3B+: 1x 10/100/300Mbps |
| Seriell / USB | 3B+: 4x USB 2.0 |
| Maße (BxHxT) | 200 x 118 x 64 mm |
| Gewicht | 1,1 kg |
| Netzteil | 12/24 VDC |
