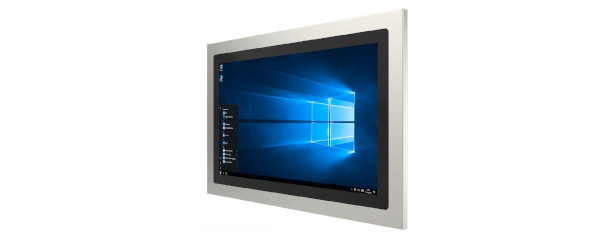

PPC 21 p2 – Panel PC with 21,5″ TFT, i7, i5, i3 and optional PoE

The Panel PC PPC21 p2 contains a 21,5 “LCD with full-HD resolution and a resistive or projected capacitive touchscreen. The fanless Intel® Core ™ i7-6700TE, i5-6500TE, i3-6100TE, Pentium® G4400TE and Celeron® G3900TE CPUs are available as processors.
The PPC21 p2 is equipped with a 9-36VDC wide-range power supply and has an IP65 aluminum or stainless steel front.

Price on request

Additional information


Core™ i7-6700TE, Quad Core, 2.4GHz, 8M cache, Core™ i5-6500TE, Quad Core, 2.3GHz, 6M cache, Core™ i3-6100TE, Quad Core, 2.7GHz, 4M cache, Pentium® G4400TE, Dual Core, 2.4GHz, 3M cache, Celeron® G3900TE, Dual Core, 2.3GHz, 2M cache


TFT 21,5" Full HD

Display notice

optional: sunlight readable (1600 cd/m²)


Multitouch (projected capacitive)


max. 32GB DDR4 SO-DIMM


1x full-sized Mini PCIe (Mini PCIe, USB and SIM signal) 1x half-sized Mini PCIe (Mini PCIe and USB signal) 1x SIM card slot

Seriell / USB

4x USB 3.0, 2x RS232, 2x RS232/422/485

Mass memory

2x 2,5" SATA III HDD/SSD mit RAID 0/1, 1x CFast Modul


585 x 377 x 131,7 mm, VESA100

Operating system

Windows 10 IoT Enterprise LTSB 2016, Windows 10 IoT Enterprise LTSC 2019, Ubuntu 16.04 LTS


585 x 377 x 131,7 mm, VESA100



Power supply

9-36V DC

Power supply notice

optional: Power over Ethernet (PoE)
