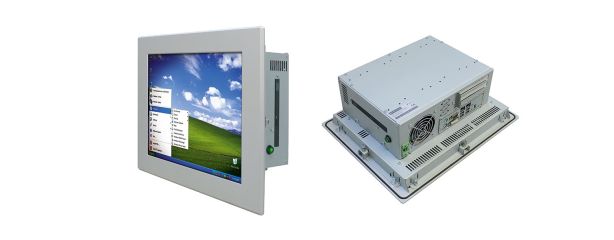

PPC 19 – Panel PC with 19″ TFT

The PPC 19 contains a 19“ LCD with SXGA resolution (1280×1024 pixel) populated with a
resistive touch screen. The display is inserted in an aluminium front panel with protection
classIP65 supported by a rubber washer to ensure a tight connection to the console front.
The flat steel sheet housing (depth 98,5mm) may be equipped with different singleboard
computers: AMD® GX-210HA/GX-217GA/GX-420CA, Intel® AtomTM N2600/D2550 or
Intel® i3/i5/i7. For insertion of max. 2 enhancement boards there is an deeper
housing available (144,5mm).There are also 2 power supplies for choice: 12/24VDC or
90-264VAC. The aluminium front panel might be modified according to clients needs. Also available as an open frame version!
Price on request

Out of stock

Additional information

CPU

AMD® GX-210HA (2x 1,0GHz), GX-217GA (2x 1,66GHz) or GX-420CA (2x 1,0GHz), Intel® ATOM N2600 (2x 1,6GHz) or D2550 (2x 1,86GHz), Intel® i3/i5/i7
Display

TFT 19" SXGA
Touch­screen

Resistiv; 4-Draht, Resistiv 5-Draht
Memory

AMD: DDR3 SO-DIMM Modul max. 16GB, Atom: DDR3 SO-DIMM Modul max. 4GB, I3/i5/i7: DDR3 SO-DIMM Modul max. 16GB
Ethernet

2x 10/100/1000Mbps
Seriell / USB

min. 1x RS232; 4x USB 2.0 (i3/i5/i7: 2x USB 3.0 + 2x USB 2.0)
Mass memory

Industrial mSATA SLC/MLC Module oder 2,5"/3,5" HDD/SSD
Extension

WLAN; RS232/422/485; USB; Audio
Operating system

Microsoft Windows 7, Microsoft Windows Embedded Standard 7, Microsoft Windows 8.1, Microsoft Windows Embedded 8 Standard, Microsoft Windows 10, Microsoft Windows 10 IoT
Dimensions

470x391x98,5mm (without PCI-Slot), 470x391x144,5mm (with PCI-Slot)
Power supply

12/24 VDC, 115/230 VAC
Power supply notice

90-264 VAC
Option

AMD: 2x PCI-slot or 1xPCI- and 1x PCIeX4-slot, Atom: 1x PCI-slot, Intel: 1x PCI-slot or 1x PCIeX16-slot, Also available as an open frame version, Monitor unit without PC, Input VGA or DVI
