PPC 10 – Panel PC with 10,4″ TFT

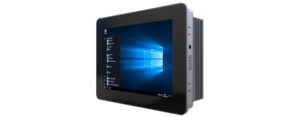

The Panel PC PPC 10 contains a 10,4“ LCD with XGA resolution (1024×768 pixel) anda resistive touch screen. The display is inserted in an aluminium front panel with protection class IP65. The stainless steel sheet housing bears a singleboard computer with a Intel® Atom N3160®, 4×1,6GHz quad coreTM. There are also 2 power supplies for choice: 12VDC or 19-24VDC.
The aluminium front panel might be modified according to clients needs.
Data-sheet-PPC10-4.pdf

Additional information

CPU

Intel® ATOM N3160 / 4x 1,6GHz quad core
Display

TFT 10,4" XGA
Anmerkung Display

optional auch VGA und SVGA Auflösung verfügbar
Touch­screen

Resistiv; 4-Draht
Speicher

max. 8GB-DDR3L
Ethernet

2x 10/100/1000Mbps
Seriell / USB

4x USB 3.0
Massenspeicher

mSATA 16/32/64/128/256/512 GB, optional: 2,5" HDD oder SSD
Erweiterung

WLAN; RS232/422/485;
Betriebssystem

Microsoft® Windows 7, Microsoft® Windows Embedded Standard 7, Microsoft® Windows 8.1, Microsoft® Windows Embedded Standard 8, Microsoft® Windows 10, Microsoft® Windows 10 IoT
Maße (BxHxT)

281x214x60mm
Gewicht

3,5kg
Netzteil

12/24 VDC
Option

Wall mounting frame, Monitor unit without PC, Input VGA or DVI
