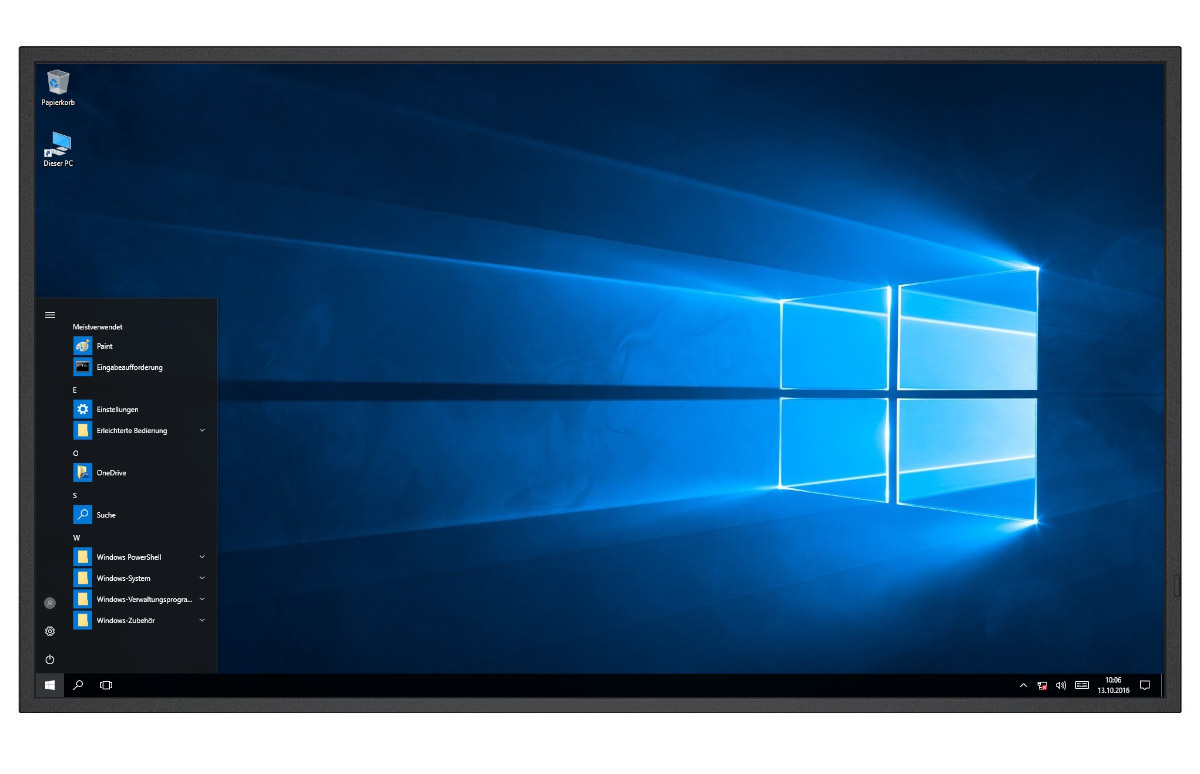

DSD-86 – 86″ 4K Digital Signage Display

The DSD-86 is an 86″ digital signage display in 16:9 format. The 500cd/m² bright display can be operated in landscape as well as in portrait mode and is designed for an 18/7 operating time.
With the integrated Android system, various media can be played or displayed and adapted to your needs by installing apps.
Also available as complete systems with the digital signage and kiosk software FrontFace from our partner Mirabyte GmbH & Co. KG available.

Also available in the sizes 43″, 50″, 55″, 65″ and 75″.

Price on request

Additional information

Display

Screen diagonal: 86" (217cm)
Technology: IPS, matte surface
Resolution: 4K (3840 x 2160)
Brightness: 500cd/m²
Contrast: 1200:1
Viewing angle: 178°/178
Operating time: 18/7
MTBF: 50,000h without backlighting
Temperature range: 0°C to 40°C (storage: -20°C to 60°C)
Orientation: landscape and portrait
with anti-burn-in function and fanless design
Interfaces

Video inputs: 1x DVI-I (1920×1080), 3x HDMI, 1x DP
Audio input: 1x 3,5mm Mini Jack
Monitor control: 1x LAN(RJ45), 1x RS232c
Video output: 1x DP
Audio output: 1x RCA, 2x 10W speaker
USB: 2x USB 2.0
CPU

MTK96+MSB6000, CA73*2+A53*2 with 3GB DDR4 RAM and 32GB eMMC storage
Android OS 8.0 with EShare
Optional: Wifi through USB Wifi adapter
Dimensions

1929 x 1100 x 95.5mm
VESA 600 x 400mm
Weight

49.5kg
Power supply

100 – 240VAC, 50/60Hz
444W typical, 0.5W standby, 0.5W off
