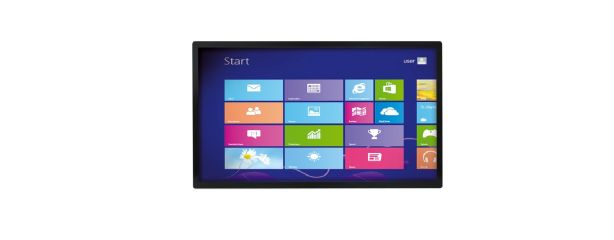

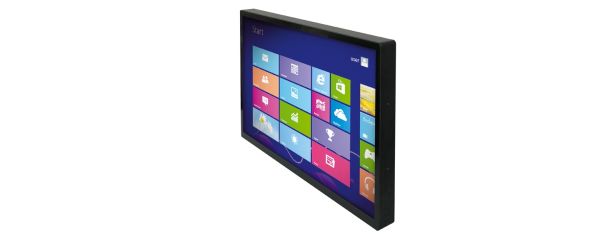

SAC 43 – all-in-one PC mit 43" TFT

The robust sheet steel housing of the industrial all-in-one PC SAC43 contains a 43" LCD with full HD resolution and an integrated multi-touch screen (pcap). Intel® i7 / i5 / i3 and ATOM Quad-CoreTMN3160 are available as processors.

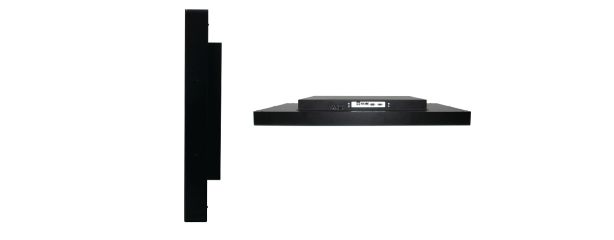

The SAC43 is equipped with a 90-265VAC power supply and has a VESA attachment (400 x 200 mm) on the back.
The standard housing color is RAL9005.

The robust sheet steel housing of the industrial all-in-one PC SAC43 contains a 43" LCD with full HD resolution and an integrated multi-touch screen (pcap). Intel® i7 / i5 / i3 and ATOM Quad-CoreTMN3160 are available as processors.
The SAC43 is equipped with a 90-265VAC power supply and has a VESA attachment (400 x 200 mm) on the back.
The standard housing color is RAL9005.

Additional information

CPU

Intel® dual-core N3060 (2x 1,6 GHz, up to 2,48 GHz, 2 MB Cache), Intel® quad-core N3160(4x 1,6 GHz, up to 2,24 GHz, 2 MB Cache), Intel® dual-core i5-7300U (2x 2,6 GHz, up to 3,5 GHz, 3 MB Cache), Intel® dual-core i7-6600U (2x 2,6 GHz, up to 3,4 GHz, 4 MB Cache), Intel® dual-core i5-6300U (2x 2,4 GHz, up to 3,0 GHz, 3 MB Cache), Intel® dual-core i3-6100U (2x 2,3 GHz, 3 MB Cache)

Display

LCD 43" Full-HD 1920×1080

Touch­screen

Multitouch (projected capacitive)

Speicher

N3060/3160: DDR3L SO-DIMM Modul max. 8GB, i3/i5/i7: DDR4 SO-DIMM Modul max. 16GB

Ethernet

2x 10/100/1000Mbps

Seriell / USB

N3060/3160: 2x USB 3.0, 1x RS232, i3/i5/i7: 4x USB 3.0

Massenspeicher

2,5" SATA HDD, mSATA SSD oder mSATA-DOM

Erweiterung

PCI; PCIe; WLAN; RS232/422/485; USB; Audio

Betriebssystem

Microsoft® Windows 7, Microsoft® Windows Embedded Standard 7, Microsoft® Windows 8.1, Microsoft® Windows Embedded 8 Standard, Microsoft® Windows 10, Microsoft® Windows 10 IoT

Maße (BxHxT)

987,5 x 587,7 x 111,1 mm

Gewicht

25,0 kg

Netzteil

115/230 VAC

Anmerkung Netzteil

90-264 VAC

Option

Wall bracket, Also available as a monitor unit with VGA and / or DVI input. Option
