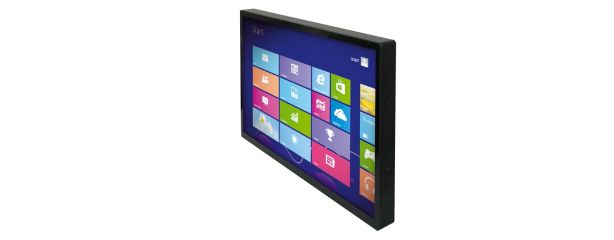

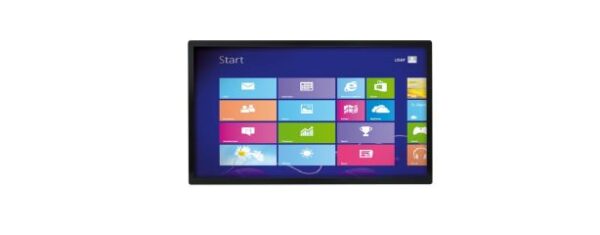

SAC 32 – all-in-one PC with 32″ TFT

System for digital signage or operation- and visualisation of machine controls with 32″ full HD display, format 16:9,1920×1080 pixel, brightness of 295 cd/m²; multi touch-screen (pcap); SBC from Intel® Celeron J1900 up to Intel® i3/i5/i7.

Price on request

Additional information

CPU

Intel® dual-core N3060 (2x 1,6 GHz, up to 2,48 GHz, 2 MB Cache), Intel® quad-core N3160(4x 1,6 GHz, up to 2,24 GHz, 2 MB Cache), Intel® dual-core i5-7300U (2x 2,6 GHz, up to 3,5 GHz, 3 MB Cache), Intel® dual-core i7-6600U (2x 2,6 GHz, up to 3,4 GHz, 4 MB Cache), Intel® dual-core i5-6300U (2x 2,4 GHz, up to 3,0 GHz, 3 MB Cache), Intel® dual-core i3-6100U (2x 2,3 GHz, 3 MB Cache)

Display

LCD 32" Full-HD 1920×1080

Touch­screen

Multitouch (projected capacitive)

Memory

N3060/3160: DDR3L SO-DIMM Modul max. 8GB, i3/i5/i7: DDR4 SO-DIMM Modul max. 16GB

Ethernet

2x 10/100/1000Mbps

Seriell / USB

N3060/3160: 2x USB 3.0, 1x RS232, i3/i5/i7: 4x USB 3.0

Mass memory

2,5" SATA HDD, mSATA SSD or mSATA-DOM

Extension

PCI; PCIe; WLAN; RS232/422/485; USB; Audio

Operating system

Microsoft® Windows 7, Microsoft® Windows Embedded Standard 7, Microsoft® Windows 8.1, Microsoft® Windows Embedded 8 Standard, Microsoft® Windows 10, Microsoft® Windows 10 IoT

Dimensions

781,5x476x92 mm

Weight

17,3 kg

Power supply

115/230 VAC

Power supply notice

90-264 VAC

Option

Wall mount, Monitor unit without PC, Input VGA or DVI
