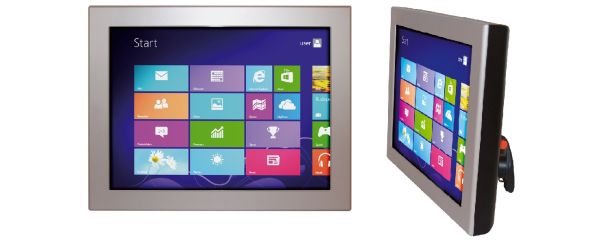

SAC 12 – all-in-one PC with 12,1″ TFT

The industrial all-in-one-PC SAC 12 contains a 12,1“ LCD, resolution SVGA (800×600 pixel) or XGA (1024×768 pixel), optional populated with a resistive 4 wire touch screen. This display is inserted in an[nbsp]aluminium front panel with the protection class of IP65.
There are 2 singleboard computers[nbsp]for choice: CPUs Intel® quad-coreTM Celeron J1900 (2,0GHz), Intel® dual-coreTM ATOM D2550 (1,86GHz) or AMD® Geode LX800 (500 MHz).
There are also 2[ different power supplies: 12/24VDC or 90-264VAC.
The powder coated steel sheet housing (colour RAL 9005) contains a VESA fastener[nbsp](60x60mm) to connect a stand or a lockable wall mount arm.

Price on request

Additional information


Intel® Celeron J1900 / 2,0GHz quad core, Intel® ATOM D2550 / 1,86GHz dual core, AMD Geode LX800 / 500MHz


TFT 12,1" SVGA or XGA


Resistiv; 4-Draht


AMD: max. 2GB-DDR2, Intel®: max. 8GB-DDR3


2x 10/100/1000Mbps

Seriell / USB

1x RS232; 2x USB

Mass memory

mSATA 2/4/8GB SLC or 16/32/64/128/256GB MLC, 2,5" SATA HDD min. 250GB, Industrial Compact Flash (only Geode)


WLAN; RS232/422/485; USB; Audio


Microsoft® Windows 7, Microsoft® Windows Embedded Standard 7, Microsoft® Windows 8.1, Microsoft® Windows Embedded 8 Standard, Microsoft® Windows 10, Microsoft® Windows 10 IoT




3,5 kg

Power supply

12/24 VDC, 115/230 VAC

Power supply notice

90-264 VAC


Arm with rotational / tilt adjustment and locking, Monitor unit without PC, Input VGA or DVI

Data sheet:
