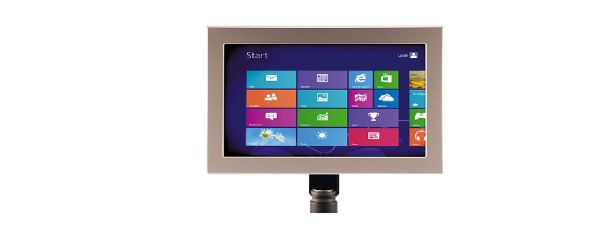

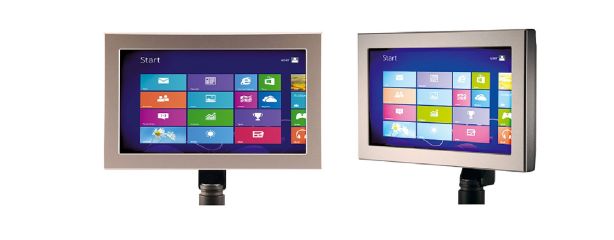

SAC 10-1 – all-in-one PC with 10,1″ TFT

The robust aluminum housing of the industrial-all-in-one PC SAC10 contains a 10.1 “wide screen multitouch display with a resolution of 1280 × 800 pixels. The Intel® Dual-CoreTM ATOM N3060 with 1.6GHz or the Intel® Quad-CoreTM ATOM N3160 with 1.6GHz are available as processors. The SAC10 has an input voltage of 12VDC and has a VESA mounting on the back. External power packs for different power supplies are available.

Price on request

Additional information


Intel® ATOM N2600 / 2x 1,6GHz dual core, Intel® ATOM D2550 / 2x 1,86GHz dual core


TFT 10,1″ 1280×800


Multitouch (projected capacitive)


max. 4GB-DDR3


2x 10/100/1000Mbps

Seriell / USB

1x RS232, 2x USB

Mass memory

D2550: mSATA 2 – 8GB SLC or 16/32/64/128/256GB MLC


Power supplies for various input voltages

Operating system

Microsoft® Windows 7, Microsoft® Windows Embedded Standard 7, Microsoft® Windows 8.1, Microsoft® Windows Embedded 8 Standard, Microsoft® Windows 10, Microsoft® Windows 10 IoT


263x165x54 mm


2,00 kg

Power supply

12 VDC

Power supply notice



Arm with rotational / tilt adjustment and locking, Monitor unit without PC, Input VGA or DVI

Data sheet:
