SAC 07 – all-in-one PC with 7″ TFT

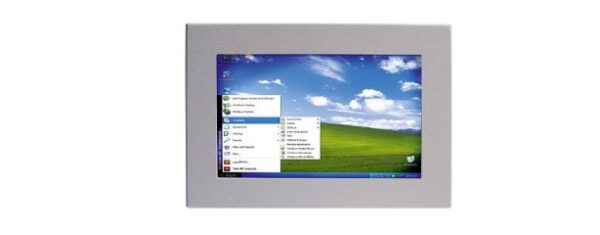

The industrial all-in-one-PC SAC 07 contains a 7“ wide screen LCD, resolution (800×400 pixel) optional populated with a resistive 4 wire touch screen. The display is covered by a powder coated frame (colour RAL9006). The singleboard computer is equipped with the CPU Intel Dual-CoreTM ATOM D2550 (1,86GHz) or AMD™ Geode LX800® (500MHz).
The system is supplied by 5VDC (max. 14W) the external power supply may be selected from 12/24VDC or 90-264VAC.

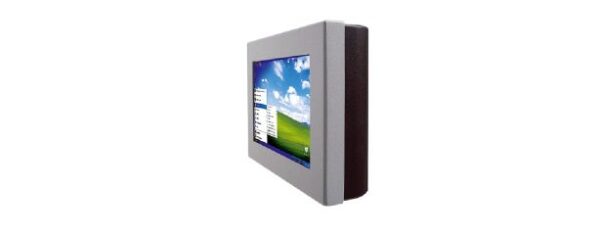

The powder coated steel sheet housing (colour RAL 9005) contains a VESA fastener (60x60mm) to connect a stand or a lockable wall mount arm.

The industrial all-in-one-PC SAC 07 contains a 7“ wide screen LCD, resolution (800×400 pixel) optional populated with a resistive 4 wire touch screen. The display is covered by a powder coated frame (colour RAL9006). The singleboard computer is equipped with the CPU Intel Dual-CoreTM ATOM D2550 (1,86GHz) or AMD™ Geode LX800® (500MHz).
The system is supplied by 5VDC (max. 14W) the external power supply may be selected from 12/24VDC or 90-264VAC.
The powder coated steel sheet housing (colour RAL 9005) contains a VESA fastener (60x60mm) to connect a stand or a lockable wall mount arm.

Data-sheet-SAC07.pdf

Out of stock

Additional information

CPU

Intel® ATOM D2550 / 2x 1,86GHz dual core, AMD Geode LX800 / 500MHz
Display

TFT 7″ WVGA
Touch­screen

Resistiv; 4-Draht
Speicher

D2550: max. 4GB-DDR3, LX800: max. 1GB-DDR
Ethernet

D2550: 2x 10/100/1000Mbps, LX800: 2x 10/100Mbps

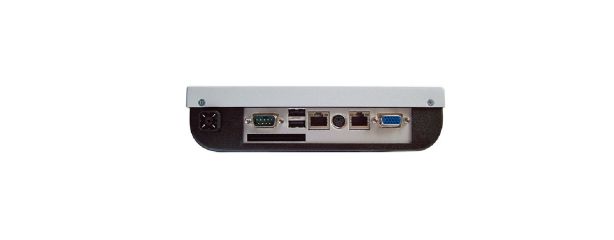

Seriell / USB

D2550: 2x USB, LX800: 1x RS232; 2x USB
Massenspeicher

D2550: mSATA 2 bis 8GB SLC oder 32/64GB MLC, LX800: Industrial Compact Flash
Erweiterung

Power supplies for various input voltages
Betriebssystem

Microsoft® Windows 7 (außer LX800), Microsoft® Windows Embedded Standard 7 (außer LX800), Microsoft® Windows 8.1 (außer LX800), Microsoft® Windows Embedded Standard 8 (außer LX800), Microsoft® Windows 10 (außer LX800), Microsoft® Windows 10 IoT (außer LX800)
Maße (BxHxT)

205x143x52mm
Gewicht

0,75 kg
Netzteil

12 VDC, 5 VDC
Option

Arm with rotational / tilt adjustment and locking, Monitor unit without PC, Input VGA or DVI
