EBE-LX800 – CPU with 500MHz ISA96-/AT96 bus

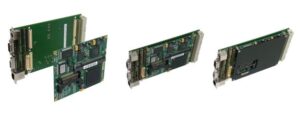

This euroboard (100x160mm) fits in a 19” rack of 3U (single-height). It consists of a baseboard with a stackable ETX CPU module AMD Geode LX800 / 500MHz, 1GB of RAM and an industrial CF memory. The front connectors are Ethernet, VGA, RS232 and PS/2. The VG bus connector is selectable from AT96- or ISA96 bus standard. Also client-specific front panels incl. cables are part of our delivery program.

Additional information

CPU

AMD Geode LX800 / 500MHz

Memory

max. 1GB-DDR

Ethernet

1x 10/100 Mbps

Interfaces

bis zu 3x RS232, 4x USB 2.0, 1x TFT (TTL/LVDS) uvm.1x RS232; 1x LAN, 1x VGA, 1x PS/2

Mass memory

Industrial Compact Flash (HD optional)

Operating system

Microsoft Windows XP Professional, Microsoft Windows XP Embedded

Option
