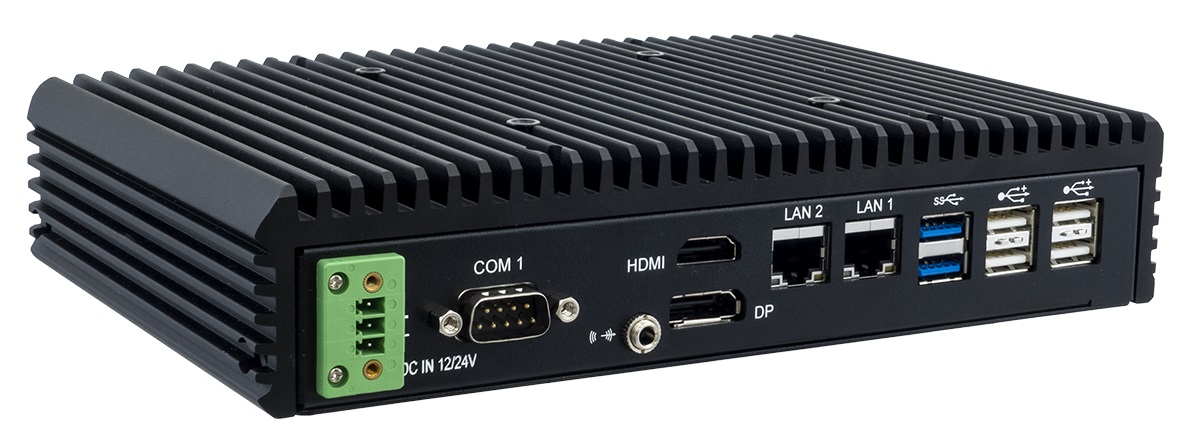

Embedded Box Computer EBC09
Embedded Box Computer EBC09 front
Embedded Box Computer EBC09 back1
Embedded Box Computer EBC09 back2
Embedded Box Computer EBC09 back3

EBC09 – Embedded Box Computer

with Intel Core i3-7100U or i5-7300U CPU, -10°C ~ 60°C and eight digital inputs and outputs.
The robust and compact metal housing of the embedded Box PC EBC09 contains a single board computer and has a working temperature range from -10°C to 60°C. The Intel® CoreTM i3-7100U and i5-7300U are available as processors. The EBC09 is operated with an input voltage of 12/24VDC and has several mounting options. Optionally, a WLAN kit can be installed.

Price on request

Additional information

CPU

Intel® Core i3-7100U (2x 2,40 GHz) -10°C ~ 60°C
Intel® Core i5-7300U (2x 2,60 GHz) -10°C ~ 60°C
Memory

DDR4 SO-DIMM Modul max. 16GB
Ethernet

2x 10/100/1000Mbps
Seriell / USB

2x RS232
2x RS232/422/485 (optional)
4x USB 2.0
2x USB 2.0 (optional)
2x USB 3.1
Mass memory

2,5" SATA HDD or 2,5" SATA SSD
Interfaces

1x HDMI
1x DP
1x audio
8x digital inputs
8x digital outputs
Extension

1x mSATA
1x mini PCIe
Operating system

Microsoft® Windows 10
Microsoft® Windows 10 IoT
Linux Ubuntu
Dimensions

217,5 x 46 x 140,6mm
Weight

~2,0kg
Power supply

12/24V DC incl. external power supply 110/240VAC

Data sheet:
