EBC02 – Embedded box computer

with Intel Atom/Celeron CPU, 09-36VDC voltage input and optional -20°C to 55°C temperature range.

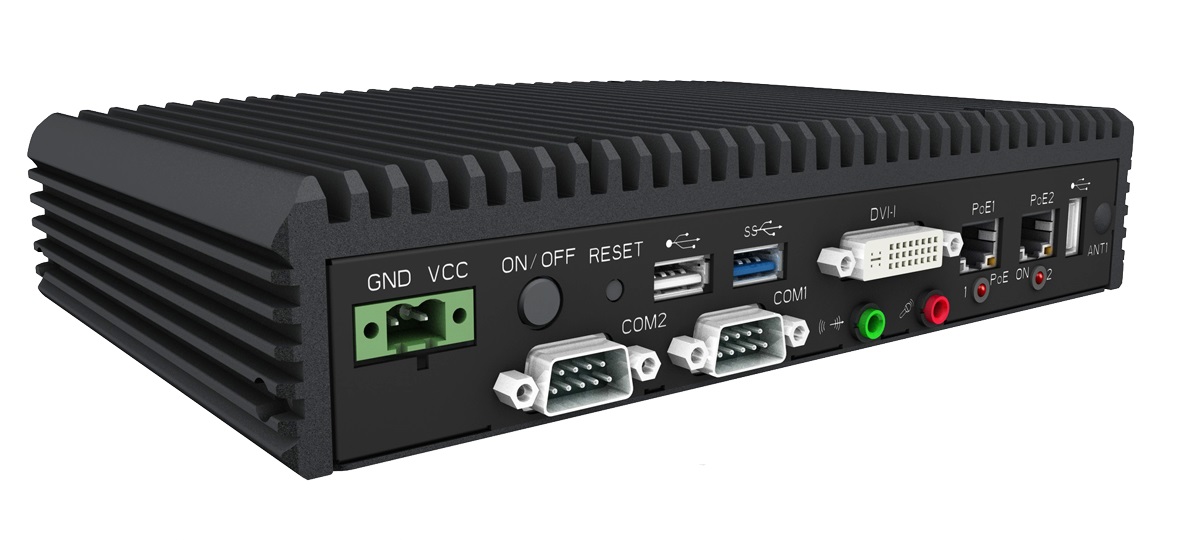

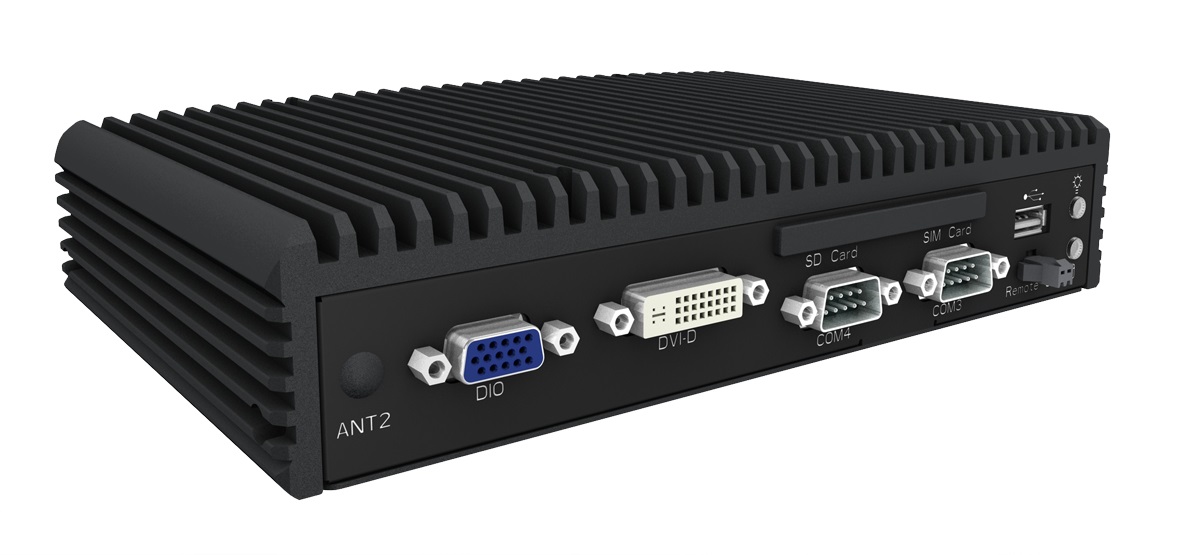

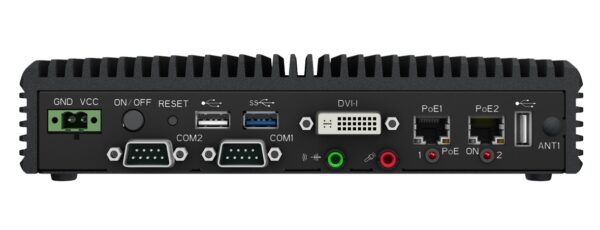

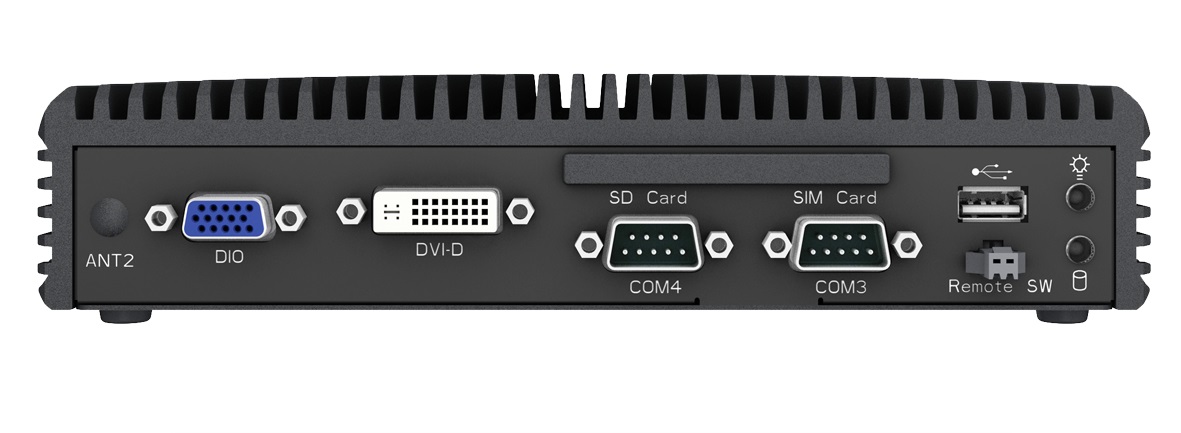

The robust and compact metal housing of the embedded Box PC EBC02 contains a single board computer. The Intel® Atom® E3545, E3826 and the Celeron J1900 are available as processors. The EBC02 is operated with an input voltage of 9-36VDC and has an extended temperature range of -20°C to 55°C with the two CPUs E3545 and E3826. Optionally, a WLAN and UMTS kit can be installed.

with Intel Atom/Celeron CPU, 09-36VDC voltage input and optional -20°C to 55°C temperature range.
The robust and compact metal housing of the embedded Box PC EBC02 contains a single board computer. The Intel® Atom® E3545, E3826 and the Celeron J1900 are available as processors. The EBC02 is operated with an input voltage of 9-36VDC and has an extended temperature range of -20°C to 55°C with the two CPUs E3545 and E3826. Optionally, a WLAN and UMTS kit can be installed.

Data-sheet-EBC02-J1900.pdf

Additional information

CPU

Intel® Celeron J1900 (4×2 GHz, 2MB Cache) quad core

Speicher

DDR3L SO-DIMM Modul max. 8GB

Ethernet

2x 10/100/1000Mbps

Seriell / USB

2xRS232 ;2xRS232/422/485, 3x USB 2.0, 1x USB 3.0

Massenspeicher

2,5" SATA HDD oder 2,5" SATA SSD

Erweiterung

CFast; mini PCIe; SIM card; USB; DIO; Audio

Betriebssystem

Microsoft® Windows 7, Microsoft® Windows Embedded Standard 7, Microsoft® Windows 8.1, Microsoft® Windows Embedded 8 Standard, Microsoft® Windows 10, Microsoft® Windows 10 IoT

Maße (BxHxT)

217,5x45x148mm

Gewicht

~2,0kg

Netzteil

9-36V DC
