IPC-4U-SER – Skylake – 19″ Rack-PC

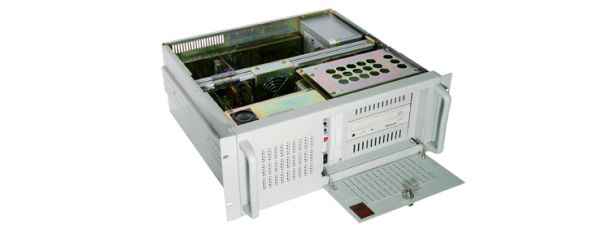

This 19”/4U rack PC is just 400mm deep. It was designed to fit in a pivoting frame of switching cabinets. The system contains of an ATX motherboard supporting the newest PC processors of the 6. generation (skylake), a space for 2×5 1/4” drives,1x 3,5” drive, power supply 100-264VAC, power-[&] reset switches, 3 LEDs, fan and changeable filter. In addition the system contains of an 8,4” LCD with LVDS interface (AGP graphics controller). Options: Resistive touchscreen, PCI peripheral boards, backplane + slot CPU and keyboard drawer on request.

Additional information

CPU

Intel® Core i7 6xxx, Intel® Core i5 6xxx, Intel® Core i3 6xxx

Memory

max. 64GB-DDR4

Slots

1x PCI Express 16x (Gen3), 1x PCI Express 16x (4 Lanes, Gen3), 1x PCI Express 8x (1 Lane, Gen3), 1x PCI Express 4x (4 Lanes, Gen3), 1x PCI Express 4x (1 Lane, Gen3), 2x PCI, 1x Mini-PCI Express / mSATA (shared)

Ethernet

2x 10/100/1000 Mbps

Interfaces extern

1x RS232; 2x LAN, 4x USB 3.0, 4x USB 2.0, 1x DVI-D, 2x DisplayPorts, 2x PS/2, 1x Audio

Mass memory

min. 500GB 3,5" HDD / min. 120 GB 2,5" SSD (optional RAID), min. 64 GB mSATA, 5,25" DVD-ROM

Operating system

Microsoft® Windows 7, Microsoft® Windows Embedded Standard 7, Microsoft® Windows 8.1, Microsoft® Windows Embedded 8 Standard, Microsoft® Windows 10, Microsoft® Windows 10 IoT

Option

ETS Keyboard in a Drawer 19"/84HP/1U
