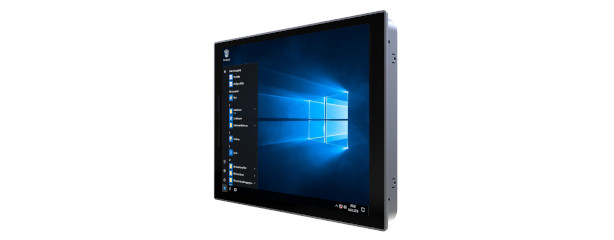

PPC 15 p1 – Panel PC mit 15″ TFT und optionalem PoE

Der Panel-PC PPC15 p1 enthält ein 15“ LCD mit XGA-Auflösung und flächenbündigen resistiven oder projected capacitiven Touchscreen. Als Prozessoren stehen die lüfterlosen Intel® Celeron® N3350, J3455, Pentium® N4200 und AtomTM x7 E3950 CPUs zur Verfügung.

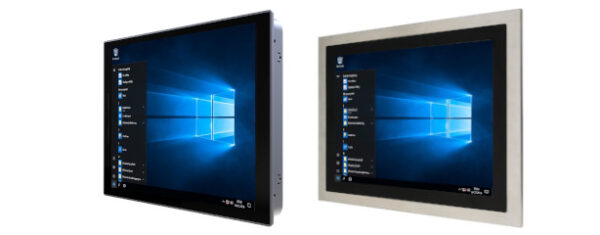

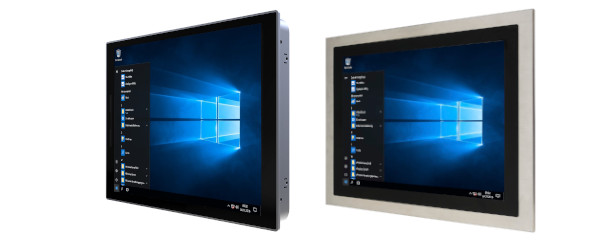

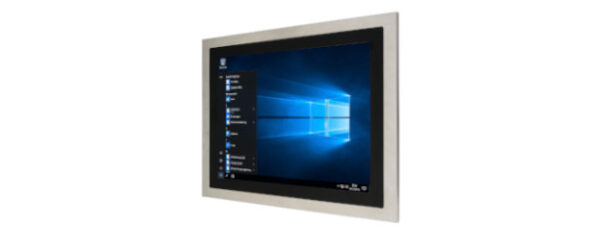

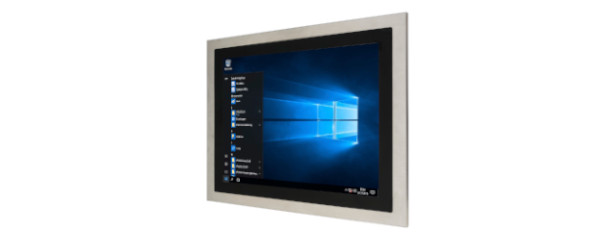

Der PPC15 p1 ist mit einem 9-36VDC Weitbereichs-Netzteil oder optional mit einem PoE-Netzteil bestückt und enthält eine IP65-Aluminium- oder Edelstahl-Front.
Andere CPU-Variante: PPC15 p2.

Der Panel-PC PPC15 p1 enthält ein 15“ LCD mit XGA-Auflösung und flächenbündigen resistiven oder projected capacitiven Touchscreen. Als Prozessoren stehen die lüfterlosen Intel® Celeron® N3350, J3455, Pentium® N4200 und AtomTM x7 E3950 CPUs zur Verfügung.
Der PPC15 p1 ist mit einem 9-36VDC Weitbereichs-Netzteil oder optional mit einem PoE-Netzteil bestückt und enthält eine IP65-Aluminium- oder Edelstahl-Front.
Andere CPU-Variante: PPC15 p2.

Data-sheet-PPC15-p1.pdf

Zusätzliche Information

CPU

Intel® Celeron® N3350 2C, 2.4GHz
Intel® Celeron® J3455 4C, 2.3GHz
Intel® Pentium® N4200 4C, 2.5GHz
Intel® Atom™ x7 E3950 4C, 1.8GHz (-20°C ~ 50°C)

Display

TFT 15" XGA 1024×768 450cd

Anmerkung Display

optional: Sonnenlicht ablesbar

Touch­screen

Multitouch (projected capacitive)
Resistiv; 5-Draht

Speicher

max. 8GB DDR3L SO-DIMM

Ethernet

2x Intel® I210IT (10/100/1000)
PoE IEEE 802.3af (optional)

Seriell / USB

3x USB 3.0
2x RS232/422/485

Massenspeicher

2,5" SATA III SSD
2,5" SATA III HDD
mSATA

Erweiterung

1x full-sized Mini PCIe (mSATA oder 3G/4G card mit USB 2.0 signal)
1x full-sized Mini PCIe (PCIe oder 3G/4G card mit USB 2.0 signal)
1x SD Slot
1x SIM Slot

Betriebssystem

Windows 10 IoT Enterprise LTSB 2016
Windows 10 IoT Enterprise LTSC 2019
Ubuntu 16.04 LTS

Maße (BxHxT)

365,3 x 249,7 x 75,5 mm

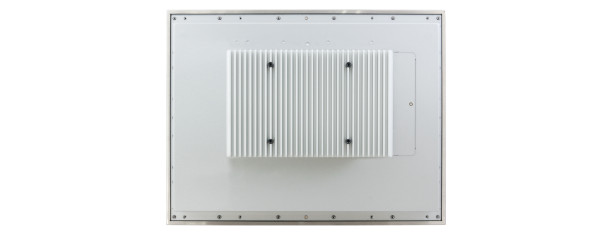

VA: 408 x 320 x 82 mm
VESA100

Netzteil

9-36V DC

Anmerkung Netzteil

optional: Power over Ethernet (PoE)
