TSC – Touchscreen-Controller

Technical Data Sheet of the TC-USB/RS232 Touch Controller Board Series

The touch controller board connects a touch screen with a computer by the interfaces RS232, USB or PS/2. It was designed to receive an accurate, swift and speedy response while using a touch screen. The driver program also provides a simulated mouse feature and supports some PC operating systems, such as Windows 98, Windows NT4, Windows 2000, Windows XP, DOS, iMac, and Red Hat Linux

Controller Specification

Power Requirements +5VDC (max. 100mA, typical 70mA, 50mV max. ripple peak-to-peak)
Operating Temperature 0 to +60 degrees C
Storage Temperature -40 to +80 degrees C
Relative Humidity 95% at +60 degrees C
Protocol RS232 model: 9600 bauds, None parity, 8 data bits, 1 stop bit
USB model: USB 1.1 low speed
PS/2 model: PS/2 mouse
Resolution 2048 x 2048
Report Rate RS232 model: max 160 points/sec
USB model: max 160 points/sec
PS/2 model: max 140 points/sec
Response time max. 35ms
Pinout definition 4 wire model: X+, Y+, X-, Y-
5 wire model: UL, UR, COM, LR, LL

Features for TouchKit software

Calibration 1. Fast full oriental 4 points position
2. Support monitor/display rotation
Compensation Accuracy 25 points linearity compensation
Draw Test Position and linearity verification
1. Support multiple controllers
2. Dynamical add/remove controllers
3. Change controller interface without reboot
Language Supports 7 languages for Windows
Mouse Emulator 1. Right/Left button emulation | 2. Click/Drawing mode
Sound Notification 1. No sound | 2. Touch downn | 3. Touch up
Double Click 1.[nbsp]Configurable double click speed
2.[nbsp]Configurable double click area
OS Support 1. Windows 95/98/ME/2000/NT4/XP
2. Windows CE2.12, 3.0
3. Linux (X Window Version: 3, 4; Red Hat: 6.0~7.2; Mandrake 5.0~8.0)
4. iMac OS9
5. MS-DOS:Supports display resolutions: 320×200, 640×200, 640×350,
640×480, 800×600, 1024×768, 1280×1024
COM Port Support 1. Support COM1~COM256 for Windows and Linux
2. Support COM1~COM8 for DOS

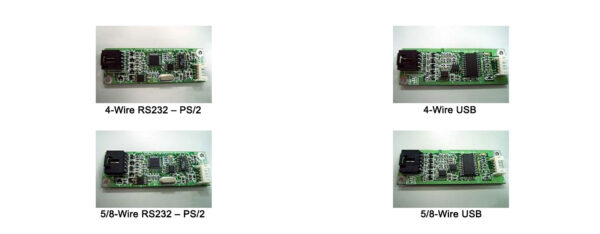

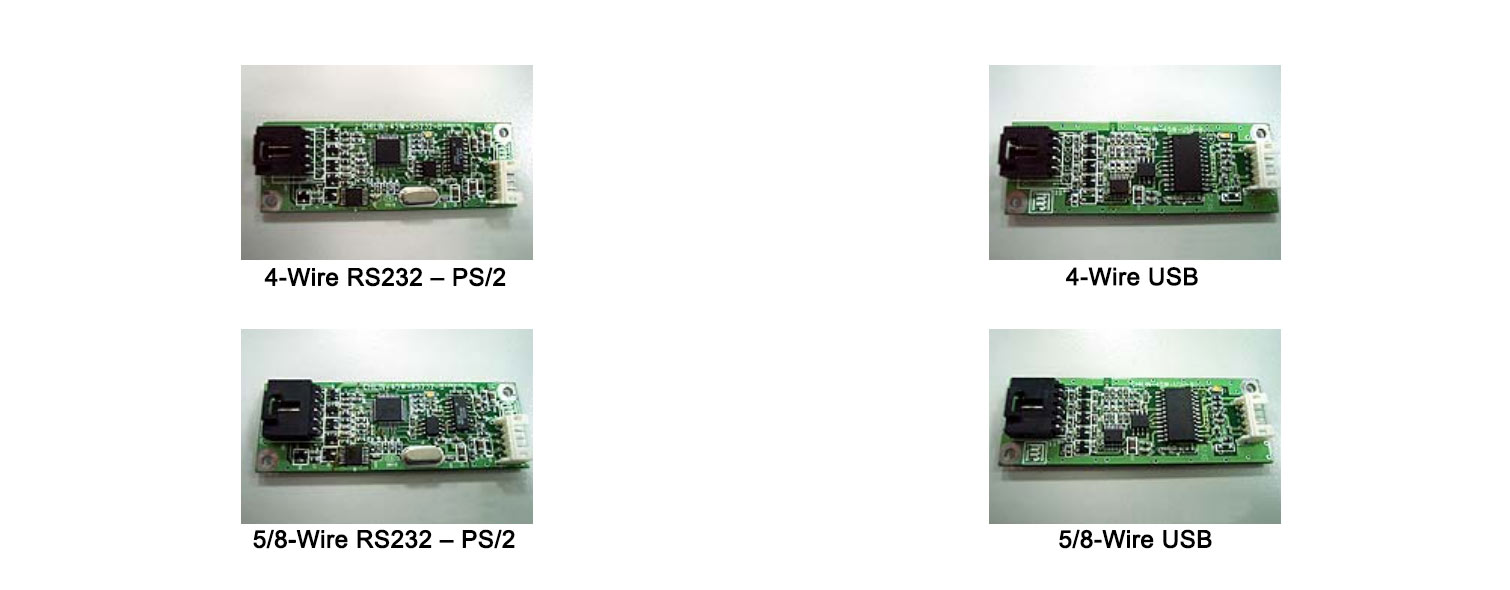

TC-USB/RS232 Controllerboard Series

Model Description
TSC-USB-W4R-SC 4-wire USB type controller board+180cm USB cable
4 pin flat ribbon cable+ software
TSC-RS232-W4R-SC 4-wire RS232 type controller board+180 cm RS232 cable
4 pin flat ribbon cable+ software
TSC-USB-W5/8R-SC 5/8-wire USB type controller board+180cm USB cable
5/8 pin flat ribbon cable + software
TSC-RS232-W5/8R-SC 5/8-wire RS232 type controller board+180 cm RS232 cable
5/8 pin flat ribbon cable + software
TSC-RS232-W5R-SCELO 5-wire ELO compatible RS232 Type controller board
180 cm RS232 cable
TSC-IC/USB-W4RD-SC 4-wire USB-firmware IC
TSC-IC/RS232-W4R-SC 4-wire RS232-firmware IC
TSC-IC/USB-W5/8R-SC 5/8-wire USB-firmware IC
TSC-IC/RS232-W5/8R-SC 5/8-wire RS232-firmware IC
TSC-IC/RS232-W5R-SCELO 5-wire ELO compatible RS232-firmware IC
