PPC 08 – Panel PC with 8,4″ TFT

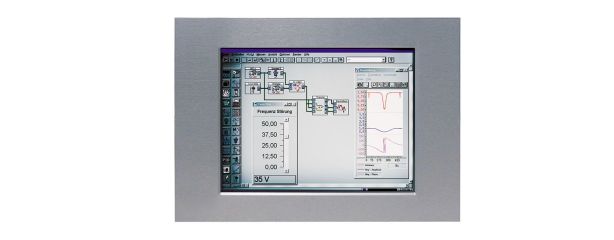

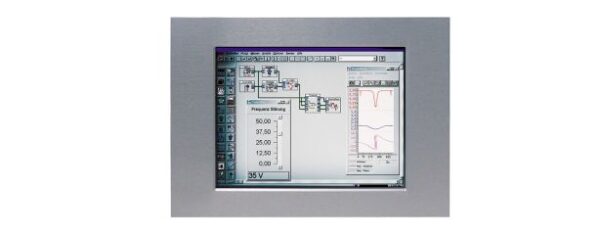

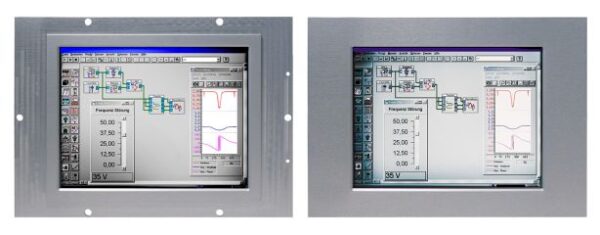

The PPC 08 contains an 8,4“ LCD[nbsp] with SVGA resolution (840×600 pixel), optional populated with a resistive 4 wire touch screen. There are 2 front panels for choice: An aluminium frame with rear stud bolts or a stable frame to be mounted in the breakout of a console front panel from the rear side. The singleboard computer is equipped with CPUs either Intel ™ Atom D2550®, N2600® or AMD™ Geode LX800®, 500MHz. There are also 2 power supplies for choice: 12/24VDC or 90-264VAC. The aluminium front panel might be modified according to clients needs.

Price on request

Out of stock

Additional information

CPU

Intel ATOM D2550 / 2x 1,86GHz dual core, Intel ATOM N2600 / 2×1.6GHz dual core, AMD Geode LX800 / 500MHz
Display

TFT 8,4″ SVGA
Touch­screen

Resistiv; 4-Draht
Memory

D2550: max. 4GB-DDR3, N2600: max. 2GB-DDR3, LX800: max. 1GB-DDR
Ethernet

D2550+N2600: 2x 10/100/1000Mbps, LX800: 1x 10/100Mbps (optional: 2x 10/100Mbps)
Seriell / USB

1x RS232; 2x USB
Mass memory

Industrial Compact Flash or 2,5" HDD
Extension

WLAN; RS232/422/485; USB; Audio
Operating system

Microsoft Windows 7 (except LX800), Microsoft Windows Embedded Standard 7 (except LX800), Microsoft Windows 8.1 (except LX800), Microsoft Windows Embedded Standard 8 (except LX800), Microsoft Windows 10 (except LX800), Microsoft Windows 10 IoT (except LX800)
Dimensions

255x185x64mm
Weight

2,0kg
Power supply

12/24 VDC, 115/230 VAC
Power supply notice

90-264 VAC
Option

Front panel mounting, Monitor unit without PC, Input VGA or DVI
