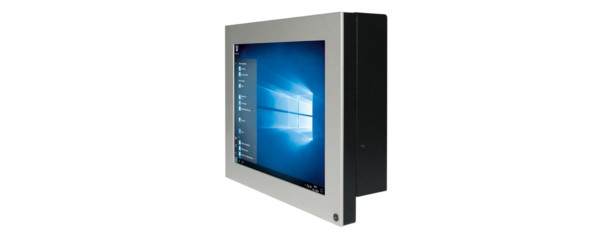

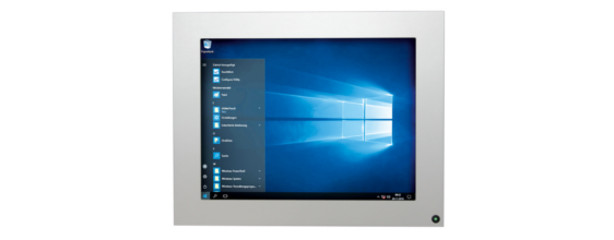

SAC 10-4 – all-in-one PC with 10,4″ TFT

The industrial all-in-one-PC SAC 10-4 contains a 10,4“ LCD, resolution (1024×768 pixel) optional populated with a resistive 4 wire touch screen. The singleboard computer is equipped with the CPU Intel Quad-Core Celeron N3150 (1,6GHz) or Dual-Core ATOM D2550 (1,86GHz). The system is supplied by 12VDC, 19-24VDC or 90-264VAC.
Price on request

Additional information


Intel® Celeron N3150 / 4x 1,6GHz quad core, Intel® ATOM D2550 / 2x 1,86GHz dual core


TFT 10,4" XGA


Resistiv; 4-Draht


N3150: max. 8GB-DDR3L, D2550: max. 4GB-DDR3

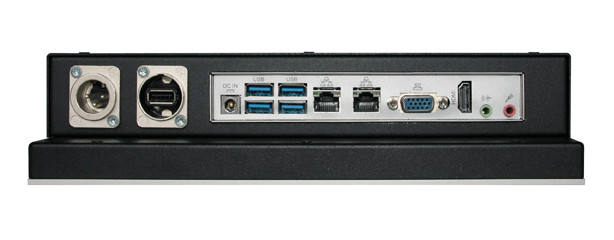

N3150: 2x 10/100/1000Mbps, D2550: 1x 10/100/1000Mbps

Seriell / USB

N3150: 4x USB 3.0, D2550: 1x RS232; 5x USB 2.0

Mass memory

N3150: mSATA 16/32/64/128/256 GB, D2550: SATA-DOM 8/16/32/64/128 GB

Operating system

Microsoft® Windows 7, Microsoft® Windows Embedded Standard 7, Microsoft® Windows 8.1, Microsoft® Windows Embedded 8 Standard, Microsoft® Windows 10, Microsoft® Windows 10 IoT


265x210x62 mm


3,0 kg

Power supply

12/24 VDC, 115/230 VAC

Power supply notice

12 VDC, 19-24VDC, 90-264 VAC, max. 25W

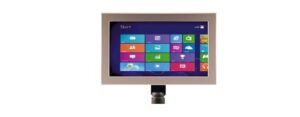

Arm with rotational / tilt adjustment and locking, Monitor unit without PC, Input VGA or DVI

Data sheet:
